Titanium Alloy Plate

Your Professional Titanium Alloy Plate Supplier

Shaanxi Hangyu Nonferrous Metal Processing Co., Ltd., founded in December 2005, is a national high-tech enterprise mainly engaged in forging titanium and titanium alloy, nickel, zirconium and other non-ferrous metal materials and deep processing of precision parts. Its product scope covers high-end fields such as aerospace, weapons and Marine equipment. The registered capital is 60 million yuan, and the registered address is No.9, East Section of Tianfeng Road, High-tech Development Zone, Baoji City, Shaanxi Province. The company has a 3500-ton fast forging machine imported by HBE company, equipped with more than 10 sets of auxiliary equipment such as box resistance heating furnace, heat treatment furnace and rail operation machine. Imported from Germany, United States and Japan, 150 sets of HELLER five-axis milling vehicle composite machining center, CNC gantry milling machining center, vertical machining center, turning center, electric spark, wire cutting, and 60 sets of advanced measuring equipment such as three coordinate measuring instrument and titanium and titanium alloy bars and forgings have capacity of 3000 tons, including 500000 pieces, which has the deep processing capability of titanium and titanium alloy raw materials to precision parts.

Ti80 Titanium Alloy Sheets For Marine Engineering
Product Introduction The nominal composition of Ti80 titanium alloy is Ti-6Al-3Nb-2Zr-1Mo. It is a near-alpha titanium alloy with a relatively high aluminum content and containing the
TA15 Titanium Alloy Plate
Product Name: TA15 Titanium Alloy Plate; Ti-6.5Al-1Mo-1V-2Zr Titanium Alloy PlateThickness: 0.5-5mm; >5-101.6mmWidth: 400-1500mm; 400-2000mmLength: 500-4000mm; 1000-6000mmstandard:ASTM B265、AMS
Ti-5111 High-Strength Titanium Alloy Plate
Ti-5111 (Ti-5Al-1Sn-1V-1Zr-0.8Mo) alloy is a low-cost titanium alloy developed in the United States. It has performance similar to Ti-6211 (Ti-6Al-2V-1Nb-1Ta) alloy and can meet the yield strength
Ti6Al7Nb Titanium Alloy Plate
Product Introduction Ti6Al7Nb titanium alloy, corresponding to the domestic grade TC20, has a nominal composition of Ti-6Al-7Nb. TC20 titanium alloy features high specific strength, excellent
TB2 Titanium Alloy Strip
Titanium alloy strip is a titanium alloy material in the form of thin sheets or coils, characterized by high strength, low density (lightweight), excellent corrosion resistance, good
TB5 Titanium Alloy Plate
Shaanxi Hangyu Nonferrous Metal Processing Co., Ltd. regularly stocks titanium alloy plates, rods of various grades, and various forged parts. Welcome to inquire.
Ti65 Titanium Alloy Plate
High-temperature titanium alloys, also known as heat-resistant titanium alloys and thermally strong titanium alloys, are widely used in multiple fields due to their high specific strength, corrosion
β21S Titanium Alloy Plate
Product Introduction β21S titanium alloy, corresponding to the domestic grade TB8, contains a large amount of Mo, Nb, and a small amount of Si elements. Therefore, this alloy has excellent

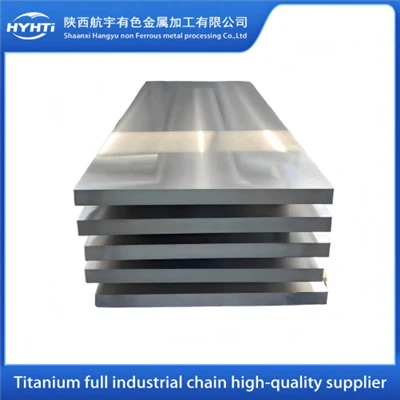

48-OT3Titanium Alloy Plate
48-OT3, corresponding to the domestic grade TA5, the nominal chemical composition is Ti-4Al-0.005B, 48-OT3 titanium alloy plate has excellent welding performance and corrosion resistance, and can be
Ti75 Alloy Plate
Ti75 alloy sheet belongs to the near alpha type titanium alloy, which has the characteristics of medium strength, high toughness, corrosion resistance, and weldability. Ti75 titanium alloy has
Ti-15-3 (TB5) Titanium Alloy Plate
Ti-15-3 (Ti-15V-3Cr-3Sn-3Al) titanium alloy plate is a new type of metastable β titanium alloy developed and developed with the funding of the US Air Force in the late 70s, which has high strength,

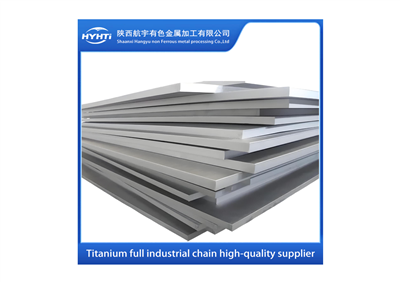

Gr.9 Titanium Alloy Plate
The main components of Gr.9 titanium alloy plate are titanium, aluminum and vanadium, which have the characteristics of high strength, corrosion resistance and light weight. It is widely used in

First 12 Last

Why Choose Us

The company in the titanium and titanium alloy, nickel, zirconium and other non-ferrous metal forging and precision parts processing technology field, has a mature product process design and processing technology, product processing quality and sales volume in the leading position in the segmentation field.

Technical Team

The company currently has over 170 employees, including 20 technical professionals, 10 senior engineers, and 15 senior technicians. A total of 55 employees hold an associate degree or higher.

Obtain Patent

The company holds 18 core product patents, and its "Hangyu Titanium" brand enjoys strong market competitiveness within the industry.

Good Reputation

With a solid reputation, the company has been recognized as an AAA-level credit enterprise in Shaanxi Province.

Physical Properties

Physical Properties	Tensile Strength	Yield Strength	Elongation	Section Shrinkage
Unit	Mpa	Mpa	%	%
Ti-6AL4V	>930	>860	>10	>25
Ti-6AL4VELI	>860	>795	>10	>25

Chemical Composition

Type	Chemical Composition (wt%)
Type	Al	V	Fe	C	N	H	O
Ti-6AL4V	5.5-6.75	3.5-4.5	0.3	0.08	0.05	0.008	0.2
Ti-6AL4VELI	5.5-6.5	3.5-4.5	0.25	0.08	0.03	0.012	0.13

Physical Properties

Physical Properties	Tensile Strength	yield Strength	Elongation	Section Shrinkage
Unit	Mpa	Mpa	%	%
Ti-6AL4V	>930	>860	>10	>25
Ti-6AL4VELI	>860	>795	>10	>25

Available Specifications

Thickness Range

3mm – 50mm (customizable)

Width

Up to 1200mm (subject to inventory and customization)

Length

Up to 3000mm (custom cutting available)

Delivery Condition

Annealed or Heat Treated

Surface Finish

Turned surface / Sandblasted surface (customizable)

Tolerance of plate

Thickness (mm)	Thickness Tolerance (mm)	Width(mm)	Width tolerance (mm)	Length(mm)	Length tolerance (mm)
0.5	+/-0.05	400-600	+15	1600-2000	+20
0.6~0.8	+/-0.07	400-600		1600-2000
0.9~1.1	+/-0.09	600-1200		1000-3000
1.2~1.5	+/-0.11
1.6~2.0	+/-0.14
2.1~3.0	+/-0.17
3.5~4.0	+/-0.22
4.1~6.0	+/-0.30	400-1000
6.1~8.0	+/-0.40
8.1~10.0	+/-0.50

Key Features

Extremely high tensile strength (up to 1200 MPa or more)

Excellent ductility and cold formability

Superior hardenability and heat treatment response

Good weldability

High corrosion resistance for harsh environments

Ideal for manufacturing critical high-load components

Applications

Aerospace structural components (landing gear, skins, fasteners, etc.)

Marine and deep-sea engineering equipment

High-performance industrial machinery

Precision mechanical structures

High-end sporting goods and special equipment

Titanium alloy plates are specified according to certain characteristics

Material Composition

Commonly used alloys include Ti-6Al-4V and Ti-6Al-7Nb, chosen for their balance of strength and formability.

Thickness

The plates can vary in thickness, from thin sheets for intricate work to thicker plates for structural support.

Size

Available in standard dimensions as well as custom sizes to fit specific design requirements.

Surface Finish

The surface may be machined, polished, or treated to provide a texture that enhances its interaction with the surrounding tissue or environment.

Relevant Qualification Certificate

FAQ

Q: How long is your delivery time?

A: Our standard delivery time for in-stock items ranges from 5-10 days. For items not readily available, delivery extends to 45-90 days, depending on the quantity ordered.

Q: Do you provide samples? Are they free or do they come with an extra charge?

A: Indeed, we are delighted to offer complimentary samples. Please note, however, that shipping fees are not included and must be borne by the recipient.

Q: What are your terms of payment?

A: Our payment terms require a 30% T/T in advance with the remaining balance due prior to shipment or by BL at sight.

Q: Can you produce the products according to my own drawings?

A: Absolutely, we can manufacture products based on your drawings, ensuring your utmost satisfaction with our tailored services.

Q: How does your factory do regarding quality control?

A: Quality is paramount to us. We consistently prioritize quality control from the inception of production to the final stages.

Q: Can I request to change the form of packaging and transportation?

A: Certainly, we can accommodate changes to packaging and transportation according to your preferences, though any additional costs incurred, including differences in services, will be your responsibility.

Q: How does your factory do regarding quality control?

A: Our commitment to quality is unwavering. We emphasize comprehensive quality control throughout the production process.

Q: How long is the delivery time?

A: Typically, orders are delivered within 10-20 working days once payment is confirmed.
For urgent orders, we expedite production to meet your needs promptly.

Q: What is your Payment?

A: Payment options include 100% T/T in advance, Western Union for small orders, or 30% T/T upfront and 70% upon shipment.
Additionally, we offer a 100% Irrevocable LC at sight for larger orders.

As one of the most professional titanium alloy plate manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy titanium alloy plate for sale here from our factory. Contact us for customized service.
